Model NO.
CL-FW5050RGB72PF-SK9822
Delivery:
EXW
Supply Ability:
3000 meter / Week
Country of Origin:
China
Stock Time:
7 Days
Quantity:
  • Support Dimmer:yes
  • Lamp Body Material:Copper
  • Certification:ce
  • Certification:RoHS
  • Place of Origin:CN;GUA
  • Application:LANDSCAPE
  • Light Source:LED
  • Input Voltage(V):5v
  • Lamp Power:43.2w
  • CRI (Ra>):75
  • Working Temperature(℃):-20 - 60
  • Working Lifetime(Hour):50000
  • Brand Name:Clen
  • Model Number:CL-FW5050RGB72PF-SK9822
  • Name:sk6822 LED STRIP
  • LED Light Source:5050 RGB SMD
  • Emitting Color:Changeable
  • Q'ty of LED:144pcs/meter
  • PCB size:12MM
  • IP rating:IP40/65/67/68
  • Warranty:2 years
  • Power:43.2w
  • Voltage:5v
  • Material:Copper

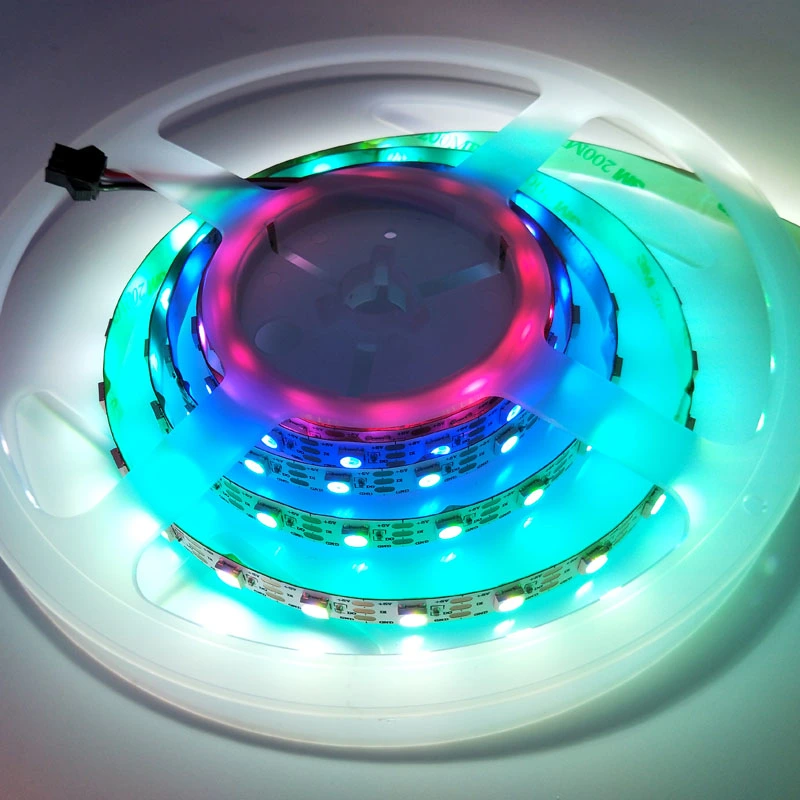

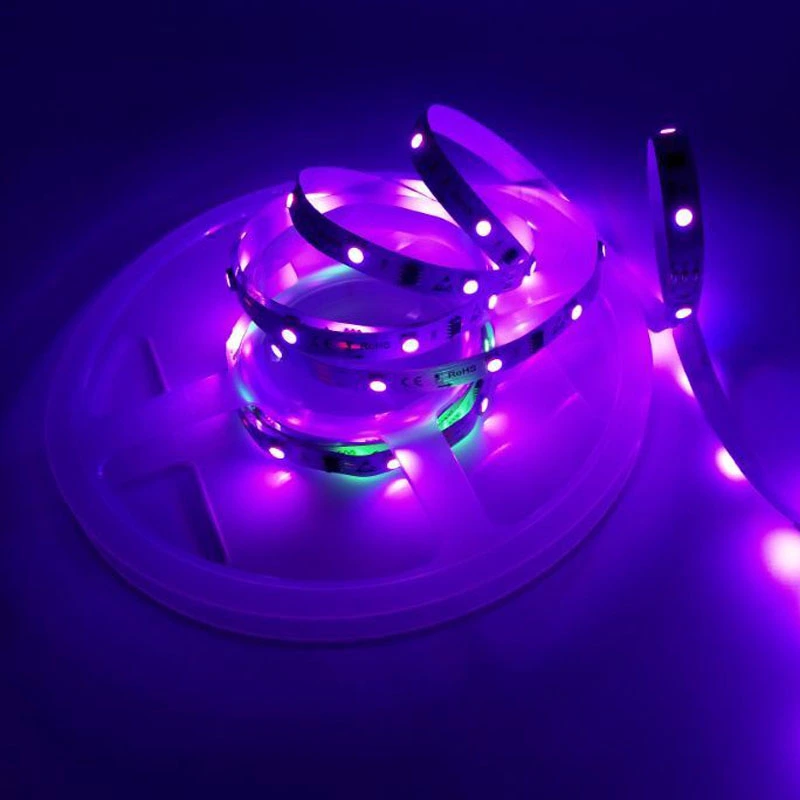

New 2019 12v Digital Led Pixel Strip

The highest resolution Digital LED Strip in the market, 144LED/M ws2811 LED Strip, inbuilt IC ws2811, each LED be controlled individually.

1. Parameter

DC5v, 43.2watt/meter;

5050 RGB, 144leds/meter, each LED separately control

Inbuilt IC APA102

Grey scale: 256;

FPC Width: 10mm;

FPC color: white;

Both waterproof (IP65, IP67,IP68) and non- waterproof(IP40) are available;

Colors: Full color changing

0.5meters/reel in anti-static bag.

2.Different versions available

APA102 LED Strip

Voltage

LED resource

Q’ty of LED

Pixels/M

Power (w)

PCB Width (mm)

5v

5050 RGB

30/M

30

9

10

5v

5050 RGB

60/M

60

18

10

5v

5050 RGB

120/M

120

36

12

5v

5050 RGB

144/M

144

43.2

12

3. Protection rate

IP40---No waterproof;

IP65---Epoxy coating;

IP67---Silicone tube;

IP68---PVC+epoxy.

5.Advantage:

1.Environment friendly.
2.Long lifespan and Energy-saving.

3.Experienced employees that capable for good service

4.Considerate and kind sales-after service.

5.Strict QC procession, ensure each product is high quality.

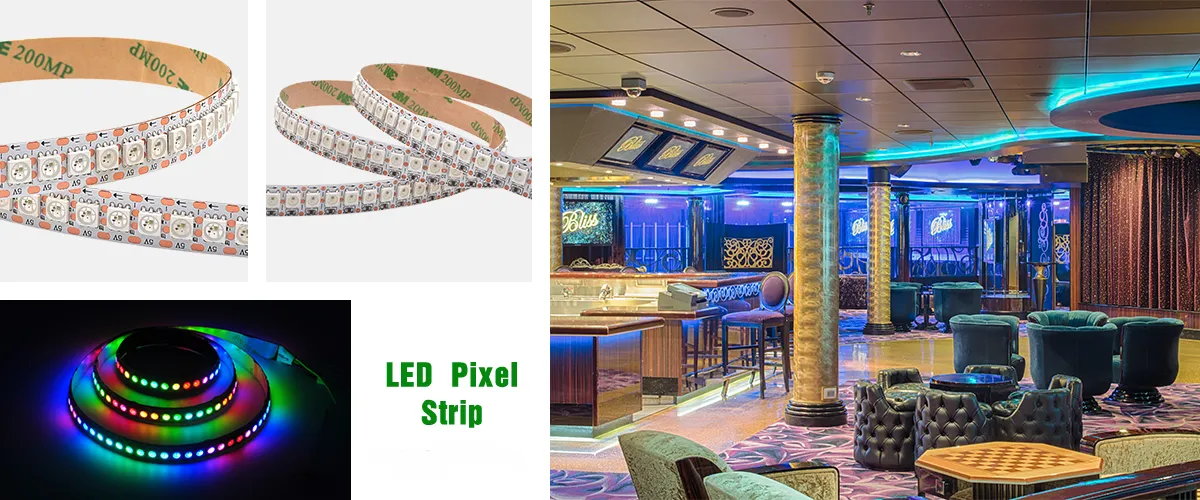

6.Application:

1)Architectural decorative lighting
2) Path and accent lighting
3) Amusement park, theater & aircraft cabin mood lighting
4) Emergency hallway lighting
5) Auditorium walkway lighting

32


413

7.Notice

Make sure the connection is correct according to the diagram.

Keep the surface of installation place clear and smooth, avoiding the strip fall off.

DO NOT press the LED.

DO NOT run over the peak value.

DO NOT attempt to make sharp bends with the strip.

DO NOT install where water or high humidity may be present without further protection.

Away from strong acid or strong alkali.

3M tape used only for indoor, when the strip installed outdoor, please use fixed slot

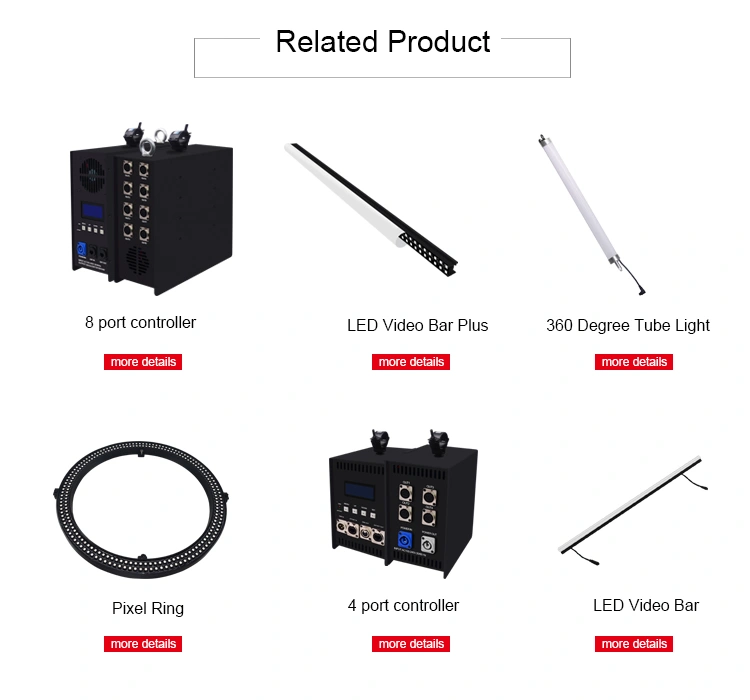

8.Related products:
