Model NO.
CL-VB5050RGB64-6
Delivery:
DAP
Minimum order quantity:
10 pieces
Supply Ability:
100 pieces / Day
Country of Origin:
China
Stock Time:
7 Days
Quantity:
  • Product Name:led decoration lights tv backlight bar dmx
  • LED Quantity:64pcs/meter
  • Voltage:DC24V
  • Max power:15W
  • Pixel quantity:64
  • IC:SK6812
  • LED Type:SMD5050 RGB
  • Length:0.5/1M
  • Waterproof Grade:IP 67
  • Warranty:2 Years
  • Color Rendering Index(Ra):80
  • Support Dimmer:yes
  • Lighting solutions service:Lighting and circuitry design
  • Lifespan (hours):50000
  • Type:Projection Lights
  • IP Rating:IP 67
  • Certification:ce
  • Certification:RoHS
  • Application:Sports Stadiums
  • Light Source:LED
  • Warranty(Year):2-Year
  • Place of Origin:CN;GUA
  • Input Voltage(V):24V
  • Lamp Luminous Flux(lm):18-20
  • CRI (Ra>):80
  • Working Temperature(℃):-20 - 60
  • Working Lifetime(Hour):50000
  • Brand Name:Clen
  • Emitting Color:RGB
Certifications

IP67 DC24V SK6812 5050led rgb partydisco lights ledrgbw pixel Light bar

Led Pixel Bar - 1.jpg

Descriptions

Brilliant and bright colours come to you with the LED rigid bar. Clubs, bars, shops and stages are the ideal locations for this slender instrument. It is also the perfect device for interesting light creations in your own rooms. LEDs have a high performance, are very bright and shed a strong and intense light. This is naturally also true for the LED rigid bar. This is only a fraction of LED’s longevity, which can bring you approx. 50.000 hours of light. The LEDs in the LED rigid bar consume only little energy. Additionally, they dissipate only little heat. This is not only good for your energy balance, it is also good for the environment.

Produt NameLED Pixel Bar
Input VoltageDC24V
Max Power15W
Qty of LED64LEDs/m
Pixels64Pixel
View Angel120°
ICSK6812
LED Tpye5050 RGB
Protection RateIP67
ModelCL-5050RGB64-SK6812
ColorsFull color RGB, dream color changing

Advantages

1. Support online control

2. Energy saving

3. Low heat-release

4.Elegant Appearance

5.MountsEasily with Keyhole Mount

6.Encased in a rugged, aluminum extrusion

Led Pixel Bar - 2.jpg

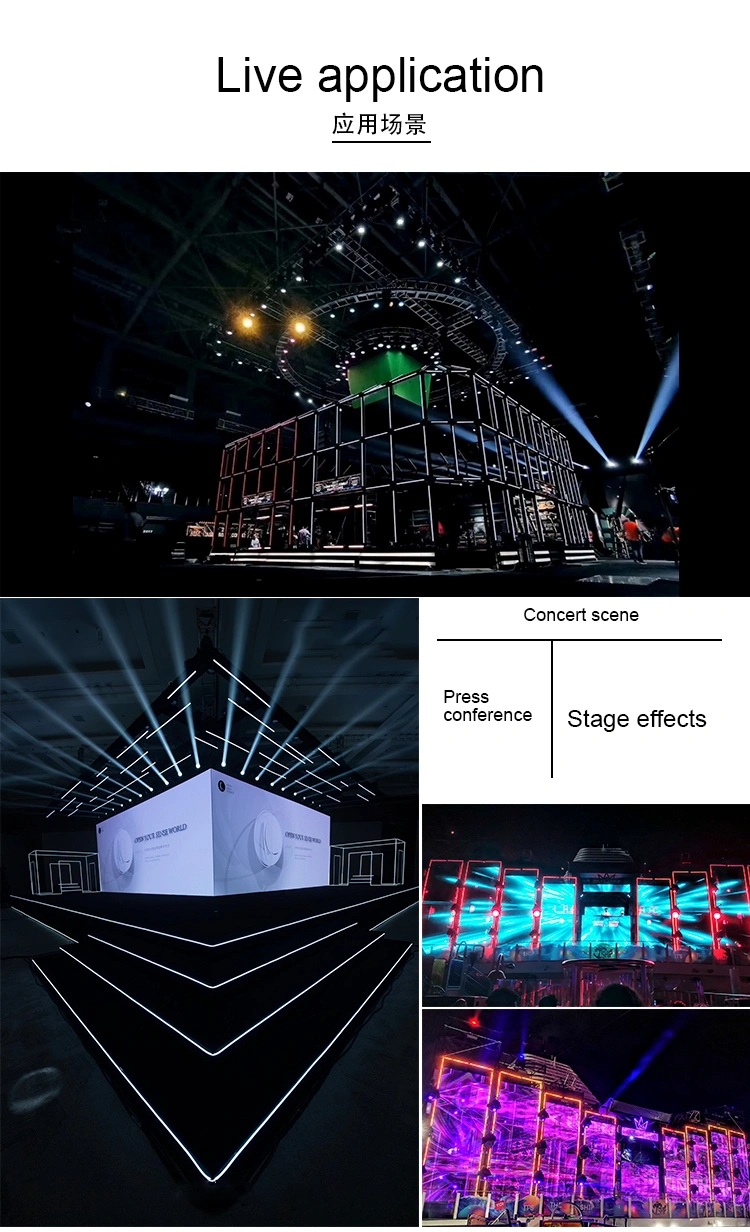

Applications

1. Holiday decoration lighting, Christmas party, holiday time, anywhere you want to produce a particularly eye-catching display.

2. Market Engineering lighting, architectural decoration, decoration of trees along streets, parks, urban night lighting.

3. Attractions landscaping, gardening, community night crystal decoration, hotels, shopping malls, night entertainment.

Led Pixel Bar - 5.jpg

Product Diagram

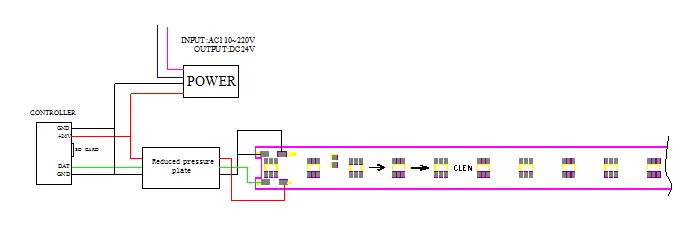

Wire connections diagram


Installation diagram


Installation

1.Input: at the needle side.Output: at the hole side.

2.DI of strip connect the DO of controller

3. If the strip is more than 10M, need a signal amplifier to increase the transmit-ability

4.Special design between 2 strips which realize seamless integrate.

5.The lamp holder can be fixed by the internal sliding bar of the bottom sliding groove.

Led Pixel Bar - 3.jpg

Note

1.Please choose our DVI control box for installation of the project.

2.Controller with 8 out port,each out port control 512 pixels

3.Power supply and controller inside the control box, the strip connect the output of controller,no need extra driver.

Advantages

1) DVI Control Mode

2)SK6812 single signal transmission

3) Single led per single pixel point Serial tansimission

4) Seamless Connection

5) Break point Continuous

6) Without voltage drop even if several joint

Led Pixel Bar - 4.jpg

Led Pixel Bar - 7.jpg

Led Pixel Bar - 6.jpg
