DC5v TM1809 30leds strip light
DC5v TM1809 30leds strip light
DC5v TM1809 30leds strip light
DC5v TM1809 30leds strip light
DC5v TM1809 30leds strip light
DC5v TM1809 30leds strip light
DC5v TM1809 30leds strip light

DC5v TM1809 30leds strip light

Model NO.
CL-BW5050RGB15- TM1809
Delivery:
EXW
Minimum order quantity:
50 meters
Supply Ability:
3000 meters / Week
Country of Origin:
shenzhen
Quantity:
  • Light Source:LED
  • Item Type:Light Strips
  • Type:Flex LED Strips
  • Lamp Body Material:Copper
  • Certification:ce
  • Emitting Color:Changeable
  • Place of Origin:CN;GUA
  • LED Light Source:5050 RGB
  • Input Voltage(V):5V
  • Lamp Power:9Watt/m
  • Lamp Luminous Flux(lm):18-20lm/led
  • CRI (Ra>):75
  • Color Temperature(CCT):2700-7000K
  • Working Temperature(℃):-40 - 50
  • Working Lifetime(Hour):50000
  • Brand Name:Clen
  • Product Name:TM1809 led strip
  • Color:Magic Color
  • LED Quantity:30 LEDs/m
  • LED Type:Smd5050 Led Chip
  • PCB Color:White PCB Black PCB
  • IP Rating:IP20/IP65/IP67/IP68
  • Warranty:2years
  • Voltage:5VDC

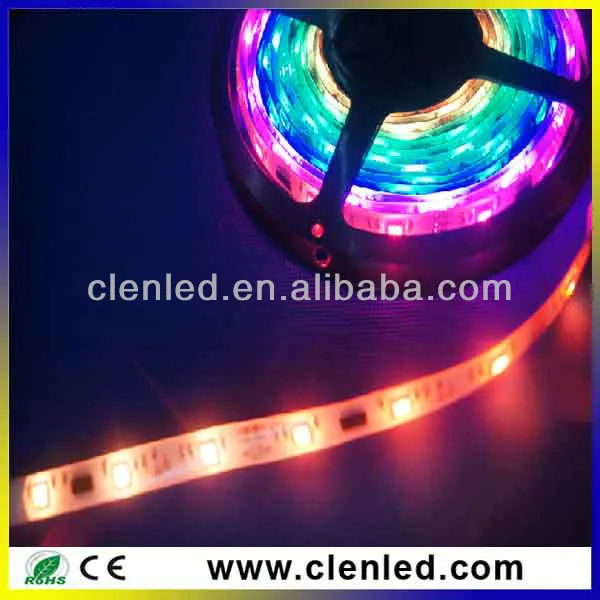

led showcase led strip lighting TM1809

TM1809 programmable LED Strip, this is a 9channels IC, makes one IC can drive 3 LED as 3 pixels, each LED complete separately control.

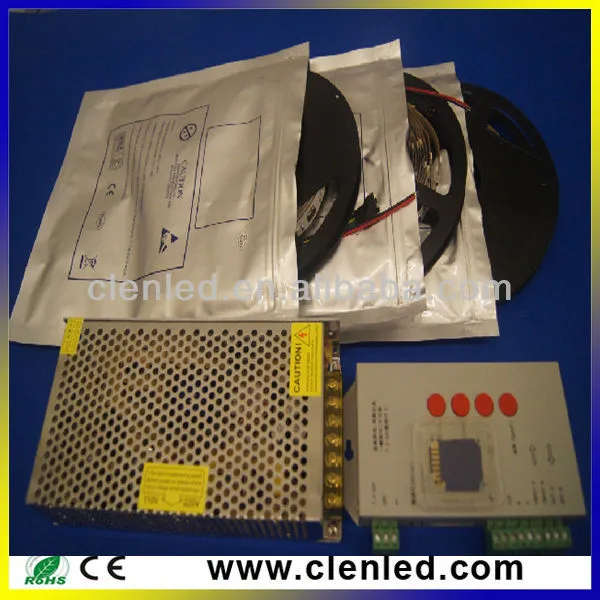

We can provide the whole device: TM1809 LED Strips +Controller+software+ Power Supplier+ Installation guide+after-sale service.

Parameter

  • Voltage: DC5 or 12v, 9watts/Meter
  • High brightness 5050 RGB
  • 30leds/meter, 150leds/roll, each LED separately control
  • 10pcs of TM1809 IC each meter, nine channels
  • Grey scale: 256;
  • 8-bits/color;
  • FPCwidth: 12mm, thickness: 4mm
  • FPC color: white, black optional
  • both waterproof (IP65, IP67,IP68) and non- waterproof(IP40)
  • Colors:Full color changing;
  • Every 3LED cuttable,about 33.3cm
  • 5meters/reel in anti-static bag
Versions optional

TM1809 LED Strip

Voltage

LED/M

Pixels/M

DC5v

30/M

30

Protection rate

  • IP40---No waterproof;
  • IP65---Epoxy coating, easy to cut and reweld

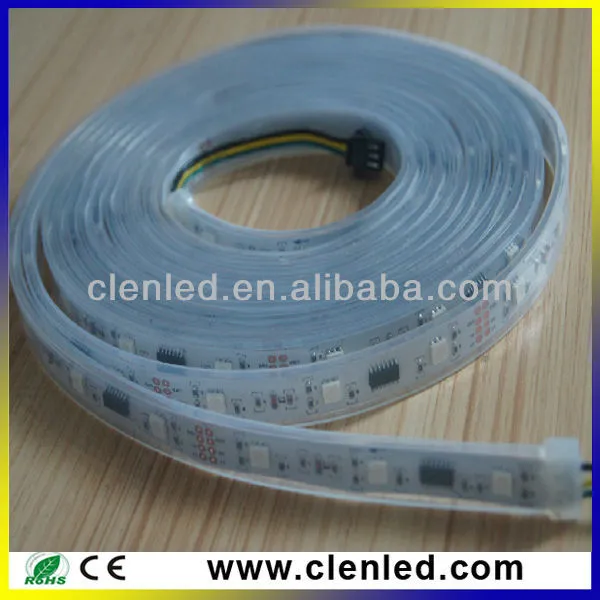

  • IP67---Silicone tube, suittable for whole use
  • IP68---IP65+IP67, can work under water

Control System

  • Large-scale control. CL-300K: on/off-line working, can control MAX 170*8 pixels
  • Small-scale control. 1000s: can control MAX 2048 Pixels, remote function
  • Compatible with DMX512 Controller or Arduino.

Application

  • To create Flexible LED Display
  • Indoor or outdoor decoration

If any questions, please don't hesitate to let me know, you're always welcomed! (Jack Huang)
