Product Name:led decoration lights tv backlight bar dmx
LED Type:SMD5050 RGB
Waterproof Grade:IP 67
Color Rendering Index(Ra):80
Lighting solutions service:Lighting and circuitry design
IP Rating:IP 67
Place of Origin:CN;GUA
Lamp Luminous Flux(lm):18-20
Working Temperature(℃):-20 - 60
LED Stage djPixel Bar SK6812 5050RGB 24V Milky Arched Cover light equipment
Brilliant and bright colours come to you with the LED rigid bar. Clubs, bars, shops and stages are the ideal locations for this slender instrument. It is also the perfect device for interesting light creations in your own rooms. LEDs have a high performance, are very bright and shed a strong and intense light. This is naturally also true for the LED rigid bar. This is only a fraction of LED’s longevity, which can bring you approx. 50.000 hours of light. The LEDs in the LED rigid bar consume only little energy. Additionally, they dissipate only little heat. This is not only good for your energy balance, it is also good for the environment.
LED Pixel Bar
Qty of LED
Full color RGB, dream color changing
1. Support online control
2. Energy saving
3. Low heat-release
5.MountsEasily with Keyhole Mount
6.Encased in a rugged, aluminum extrusion
1. Holiday decoration lighting, Christmas party, holiday time, anywhere you want to produce a particularly eye-catching display.
2. Market Engineering lighting, architectural decoration, decoration of trees along streets, parks, urban night lighting.
3. Attractions landscaping, gardening, community night crystal decoration, hotels, shopping malls, night entertainment.

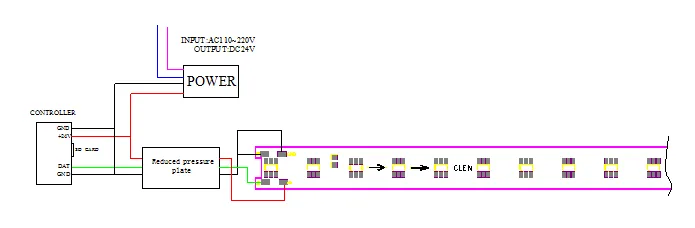

Wire connections diagram
1.Input: at the needle side.Output: at the hole side.
2.DI of strip connect the DO of controller
3. If the strip is more than 10M, need a signal amplifier to increase the transmit-ability
4.Special design between 2 strips which realize seamless integrate.
5.The lamp holder can be fixed by the internal sliding bar of the bottom sliding groove.
1.Please choose our DVI control box for installation of the project.
2.Controller with 8 out port,each out port control 512 pixels
3.Power supply and controller inside the control box, the strip connect the output of controller,no need extra driver.
1) DVI Control Mode

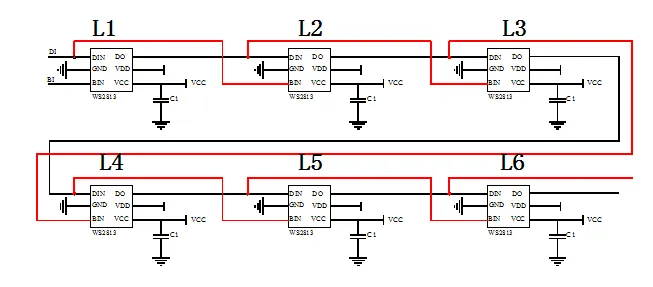

2)SK6812 single signal transmission
3) Single led per single pixel point Serial tansimission
4) Seamless Connection
5) Break point Continuous
6) Without voltage drop even if several joint
Q1.Why choose Shenzhen Clen Optoelectronics Co.,Ltd? A: We are a manufacturer in this industry for 10 years, we have advanced equipment, excellent production team and our own designers and engineers, we can provide professional severice and also OEM severice. Welcome to visit the factory to comfirm.
Q2. How to place an order ? A: Pls provide your requirements or application and send us order by E-mail with your detail information,then we will send you a PI to confirm .then, if all information is right and you can make 30% deposit payment.Finally, we will arrange order as soon as possible once received your payment.
Q3. Does Clen support customer design order? A: Yes, Clen supports OEM/ODM order.
Q4. What's your payment term ? A: 30% deposit and full payment before shipment , we can accept payment by Paypal, MoneyGram, L/C, Western Union , T/T and Alibaba Trade Assurance Order
Q5. What is your delivery time ,Can we receive our goods on time? A: We offer fast lead time ,usally 1-2 days if on stocks , 3--5 days if out of stocks. Please contact us for a accurate delivery date in advance.
Q6. What is Warranty of Clen products? A: 2 years warranty since goods shipped.
