Meanwell LED Switch Mode Power Supply with Cooling Fan 5V
Meanwell LED Switch Mode Power Supply with Cooling Fan 5V
Meanwell LED Switch Mode Power Supply with Cooling Fan 5V
Meanwell LED Switch Mode Power Supply with Cooling Fan 5V
Meanwell LED Switch Mode Power Supply with Cooling Fan 5V
Meanwell LED Switch Mode Power Supply with Cooling Fan 5V
Meanwell LED Switch Mode Power Supply with Cooling Fan 5V
Meanwell LED Switch Mode Power Supply with Cooling Fan 5V
Meanwell LED Switch Mode Power Supply with Cooling Fan 5V

Meanwell LED Switch Mode Power Supply with Cooling Fan 5V

Model NO.
CL-5v-350W
Minimum order quantity:
1 piece
Supply Ability:
1000 piece / Month
Country of Origin:
Shenzhen
Quantity:
  • Place of Origin:CN;GUA
  • Output Type:Single
  • Output Power:300W
  • Brand Name:Clen
  • Model Number:CL-5vpower supply
  • Input Voltage:100-240V
  • Output Voltage:5V
  • Output Frequency:50/60HZ
  • Output Current:60A
  • Product Name:Power Supply
  • Size:215*115*30mm(L*W*H)
  • Output Voltage:5V
  • Input Voltage:100-120V/200-240V
  • Output Current:60A
  • Input Current:6.8A/3.4A
  • Output Frequency:50/60HZ
  • Materail:Aluminum
  • Certification:CE
  • Warranty:2 Years

Meanwell LED Switch Mode Power Supply with Cooling Fan

power supply_2.jpg

Descriptions

This power supply is a 350W single-output enclosed power supply with 30mm of low profile design. The high effeciency up to 89%, with the built-in long life fan can work under -25~+70°C with full load.

Product Name

Switching Mode Power Supply

DC Voltage5V
Rated Current60A
Current Range0~60A
Rated Power300W
Voltage adj. Range4.5~5.5V
Load regulation ±2.0%
Working Temp.-25~70°C
Size215*115*30mm(L*W*H)
Weight0.76KG

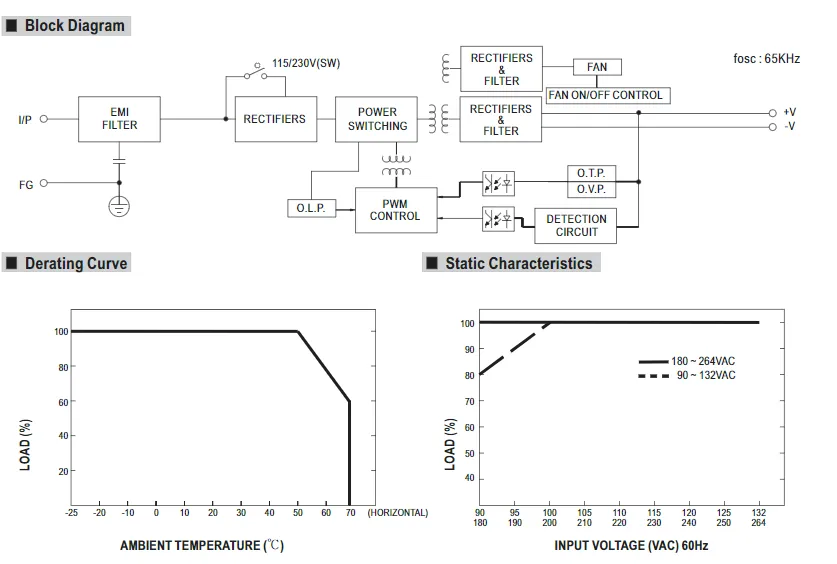

Diagram

Advantages

1. LED indicator for power on

2. Forced air cooling by built-in DC fan

3. Built-in cooling Fan ON-OFF control

4. AC inpput range selectable by switch

5. Withstand 300VAC surge input for 5 second

6. Protection: Short circuit / Overload / Over voltage / Over temperature

Send Inquiry Now

Applications

1. Industrial control system

2. Industrial automation machinery

3. Mechnical and electrial equipment

4. Electronic instruments, equipments or apparatus
