Model NO.
CL-BW5050RGB15- DMX512 7.2w
Delivery:
EXW
Minimum order quantity:
50 meters
Supply Ability:
3000 meters / Week
Country of Origin:
Shenzhen
Stock Time:
7 Days
Quantity:
  • Light Source:LED
  • Item Type:Light Strips
  • Type:Flex LED Strips
  • Certification:ce
  • Certification:RoHS
  • Emitting Color:RGB
  • Place of Origin:CN;GUA
  • Lamp Body Material:copper
  • LED Light Source:5050rgb
  • Input Voltage(V):12
  • Lamp Power:7.2
  • Lamp Luminous Flux(lm):20
  • CRI (Ra>):80
  • Color Temperature(CCT):unknown
  • Working Temperature(℃):-20 - 60
  • Working Lifetime(Hour):50000
  • Brand Name:clen
  • Product Name:DMX512 LED Strip
  • LED Quantity:24 LEDs/m
  • Pixel:24 pcs/m
  • IC Type:DMX512
  • LED Type:SMD5050 RGB
  • Size:5000*10*4
  • IP Rating:IP40/IP65/IP67/IP68
  • Beam Angle:120 Degree
  • Grey Scale:256
  • Warranty:2 Years

Newest Product Individually RGB DMX 512 LED Epistar Chip Strip

Descriptions

This LED strip, as a led pixel point source lights, is suitable for digital led colorful characters, spurts draws, channel letters, blister words, various kinds of light source of illumnation facility. Especally for outdoor use of buildings.

Product NameDMX512 Digtal LED Strip
ICDMX512
Input VoltageDC5V
Power7.2W/M
Qty of LED24 LEDs/m, each LED addressable
Pixel Quality24 pcs/m
Grade Greyscal256
Size5000*10*4 mm
LED TypeSMD5050 RGBW
ColorsFull color RGB, dream color changing



Advantages

1. Fully Dimmable

2. Support online control

3. Long lifetime for 50,000hrs

4. Can show customized effects

5. Each lamp can be controlled individually

6. Two signal cables(DAT and CLK), is faster and stable than one cable IC.+

Send Inquiry Now

Notice

1.Please use DC24V only;

2.There are direction arrows on the PCB, arrow direction for connecting next reel strip;

3.GND not only for power wire, also as signal wire, need connect to both power and controller;

4.Every 5m strip need re-connect to power supplier, avoiding voltage drop;

5.Keep the surface of installation place clear and smooth, avoiding the strip fall off. DO NOT press the LED;

6.DO NOT attempt to make sharp bend with the strip;

7.DO NOT install where water or high humidity may be present without further protection;

8.Away from strong acid or strong alkali.

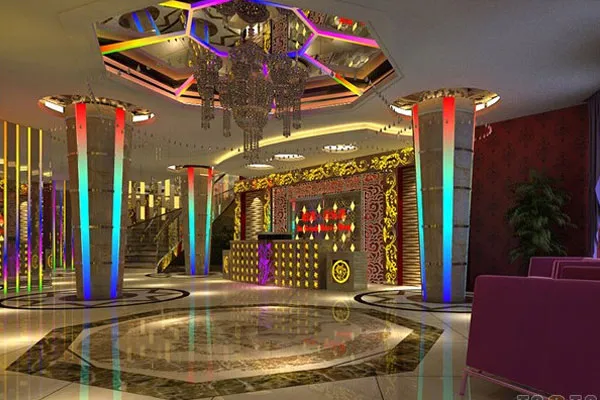

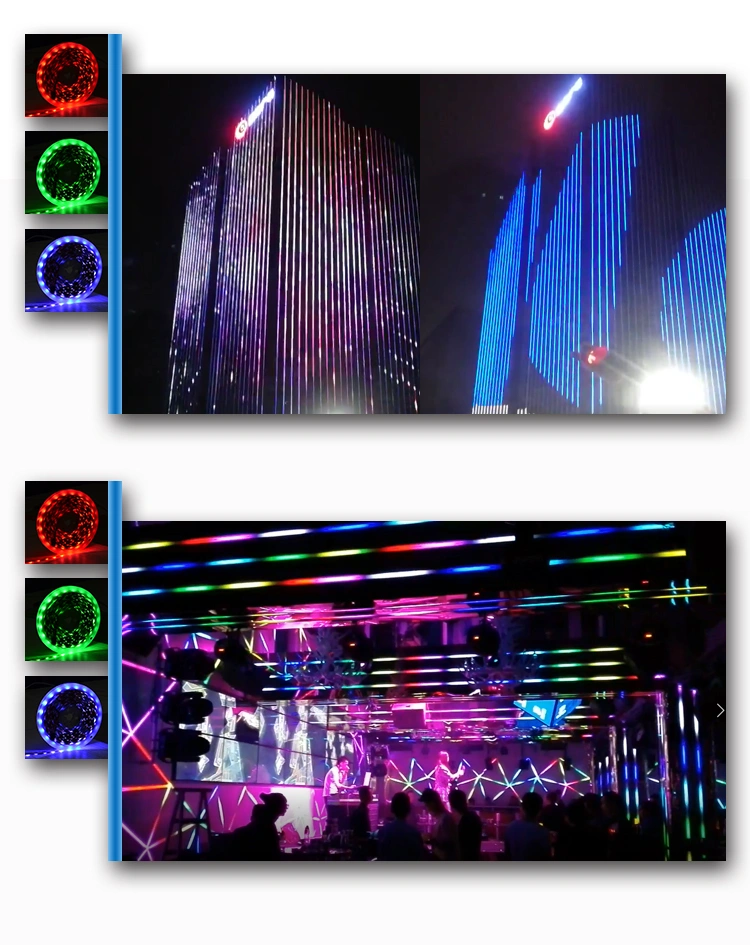

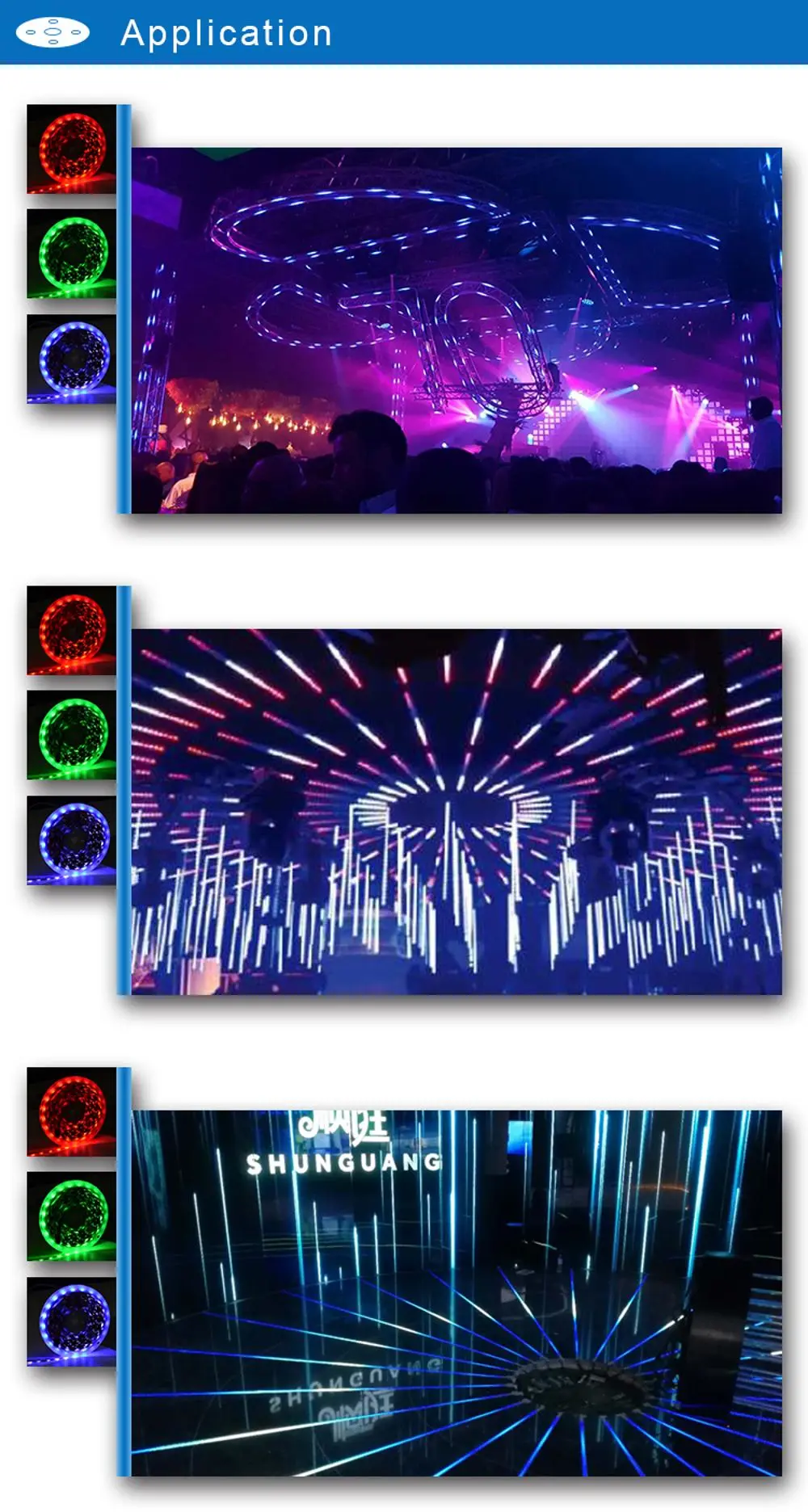

Applications

1. Backlighting or edgelighting for signage

2. Backing lighting for under water project

3. Downlighting or uplighting for wall wash applications

4. Decorative lighting for holidays, tradeshows, exhibitions

5. Under-cabinet, toe-kick, in-cove moldings,Under counter lighting

6. Architectural lighting for canopies, corridors, archways, windows

0723

shipping

FAQ

Q1.Why choose Shenzhen Clen Optoelectronics Co.,Ltd?
A: We are a manufacturer in this industry for 10 years, we have advanced equipment, excellent production team and our own designers and engineers, we can provide professional severice and also OEM severice. Welcome to visit the factory to comfirm.

Q2. How to place an order ?
A: Pls provide your requirements or application and send us order by E-mail with your detail information,then we will send you a PI to confirm .then, if all information is right and you can make 30% deposit payment.Finally, we will arrange order as soon as possible once received your payment.

Q3. Does Clen support customer design order?
A: Yes, Clen supports OEM/ODM order.

Q4. What's your payment term ?
A: 30% deposit and full payment before shipment , we can accept payment by Paypal, MoneyGram, L/C, Western Union , T/T and Alibaba Trade Assurance Order

Q5. What is your delivery time ,Can we receive our goods on time?
A: We offer fast lead time ,usally 1-2 days if on stocks , 3--5 days if out of stocks. Please contact us for a accurate delivery date in advance.

Q6. What is Warranty of Clen products?
A: 2 years warranty since goods shipped.
