12V dmx512 30leds 10pixel led rigid led strip

Model NO.
CL-BW5050RGB15- DMX512
Delivery:
EXW
Minimum order quantity:
50 meters
Supply Ability:
3000 meters / Week
Country of Origin:
shenzhen
Stock Time:
7 Days
Quantity:
  • Certification:ce
  • Certification:RoHS
  • Place of Origin:CN;GUA
  • Application:Hotel
  • Light Source:LED
  • Lamp Body Material:copper
  • Input Voltage(V):12
  • Lamp Power:7.2w
  • led qty:30leds
  • IC qty:10
  • Lamp Luminous Flux(lm):20
  • CRI (Ra>):80
  • Working Temperature(℃):-20 - 60
  • Working Lifetime(Hour):50000
  • Brand Name:clen
  • Model Number:CL-fwic5050RGB15-dmx
  • Color Temperature(CCT):rgb
  • LED Light Source:5050rgb
  • Emitting Color:RGB
  • lamp chip:Epistar

DMX LED strip DC12V, addressable 5050RGB30leds/m

Product Description

specifications

Input voltage :.............DC12v;

Power: .......................8watt/meter, 40w/roll;

Qty of LED: ...............30leds/meter, 150leds/roll, every three LEDs addressable;

Number of IC: .............10IC/meter (1 IC drives three leds chip);

Pixels: ………..............10/meter;

Color scale: ...............256;

Controller: ……………CL-1000s Controller(can control 17meters), DMX512 or CL-300k;

FPC color: ……...........white available;

Protection rate: ….......Both waterproof (IP65, IP67,IP68) and non- waterproof(IP40) are available;

Colors: ........................Full color RGB, dream color changing;

Cuttable:......................each three LEDs can be cut off.

Advantages:

1.High brightness SMD5050 LED;

2.Cuttable every three LEDs+IC along the mark;

3.Each three LED controlled;

4.Can show customized effects;

5.Support online control;

6.No ultraviolet and infrared radiation;

7.Energy saving;

8.Low heat-release;

9.Long lifetime for 50,000hrs;

10.CE and RoHS approved;

11.white PCB option.

Items for different waterproof:

IP20: Non waterproof, 3M adhensive backside.

IP65: Silica gel drop on the front side, 3M tape backside.

IP67:Silicone tube protection.

IP68:Silicone tube and drop in silica gel

Connection diagram

connection diagram

Notice:

  1. Please use DC12V only;
  2. There are direction arrows on the PCB, arrow direction for connecting next reel strip;
  3. GND not only for power wire, also as signal wire, need connect to both power and controller;
  4. The Max distance between strips is 5m-10m, need use amplifier when more than 10m;
  5. Every 5m strip need re-connect to power supplier, avoiding voltage drop;
  6. Keep the surface of installation place clear and smooth, avoiding the strip fall off. DO NOT press the LED;
  7. DO NOT attempt to make sharp bend with the strip;
  8. DO NOT install where water or high humidity may be present without further protection;
  9. Away from strong acid or strong alkali.

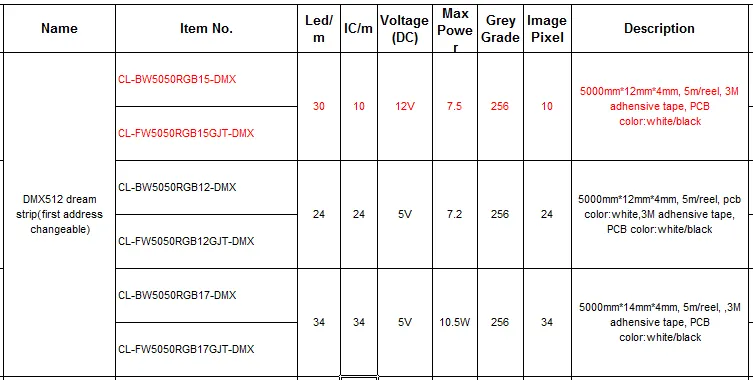

Other products technical parameters:

Products details:

148

Instructions:

Powe supply(12v)→→ Controller →→DMX512 LED Strip

1. Power supply: we have switching power supply: 50w~400w, Input voltage: AC65~264v.

2. controller:(CL-1000, CL-8000, Arduino)

CL-1000: controller, programmable, SD card offline work, it can control Max 170 pixels, remote controller. We can provide the 007 software;

CL-8000, it can work both online and offine, can control Max 1360pixel, can direct connect with DMX controller no need decoder . software is free of charge

PS: This kind of software is very easy to operate, no need a very well knowledge in software.

Applications:

1) Iluminating signs;

2) Path & contour Marking;

3) Edge-Lighting of transparent or diffused material;

4) Decorating lighting;

5) Architectural decoration Lighting;

6) Backing lighting for under water project;

7) Archway/Canopy & Bridge Edge Lighting;

8) Amusement park/ Theater/ Aircraft cabin mood lighting;

9) Furniture Decoration Lighting;

10) Cove lighting;

11) Channel letters lighting;

12) Stairway Accent lighting.

Packaging & Shipping

LED strip bale 095M one roll in a static bag 07

Our Services

Our services:

1. For all your inquires about us or our products, we will reply you in detail within 24 hours.

2. We own well-tranied and passional sales & after-sale services who can speak fluent Engligh language.

3. We offer OEM services. Can print your own logo on product, can customize the retail box packing and other things.

4. We have very experienced R&D engineers and we have strong ability to do ODM projects
