5V SK9822 30/60/120/144LEDS 4pin1 RGB led strip
5V SK9822 30/60/120/144LEDS 4pin1 RGB led strip
5V SK9822 30/60/120/144LEDS 4pin1 RGB led strip
5V SK9822 30/60/120/144LEDS 4pin1 RGB led strip
5V SK9822 30/60/120/144LEDS 4pin1 RGB led strip
5V SK9822 30/60/120/144LEDS 4pin1 RGB led strip
5V SK9822 30/60/120/144LEDS 4pin1 RGB led strip

5V SK9822 30/60/120/144LEDS 4pin1 RGB led strip

Model NO.
CL-BW5050RGB15-SK9822
Delivery:
EXW
Minimum order quantity:
50 meters
Supply Ability:
3000 meters / Week
Country of Origin:
Shenzhen
Stock Time:
7 Days
Quantity:
  • Lamp Body Material:Copper
  • Certification:ce
  • Certification:RoHS
  • Place of Origin:CN;GUA
  • Application:Theme Park
  • Light Source:LED
  • Input Voltage(V):5v
  • Lamp Power:9/18/36/43.2w
  • Lamp Luminous Flux(lm):18-20lm/led
  • CRI (Ra>):75
  • Working Temperature(℃):-20 - 60
  • Working Lifetime(Hour):50000
  • Brand Name:Clen
  • Model Number:CL-FW5050RGBW72PF-SK6822
  • Emitting Color:Changeable
  • Color Temperature(CCT):3500-6500
  • LED Light Source:5050 RGBw SMD
  • Name:SK9822 30/60/120/144LEDS 4pin1 RGBWW built in IC strip
  • Q'ty of LED:144pcs/meter
  • PCB size:12MM
  • IP rating:IP40/65/67/68
  • Warranty:2 years

SK9822 30/60/144LEDS 4pin1 RGBWW built in IC strip

1. Parameter

DC5v, 43.2watt/meter;

5050 RGB, 144leds/meter, each LED separately control

Grey scale: 256;

FPC Width: 10mm;

FPC color: white;

Both waterproof (IP65, IP67,IP68) and non- waterproof(IP40) are available;

Colors: Full color changing

0.5meters/reel in anti-static bag.

2.Different versions available

Clenled New products SK6812 ws2812b RGBW 4PIN 1 digital led stirp
ModelLED QuantityWattVoltagePixel QuantityIC TypeLight ColorIP Grade
CL-5050-3030pcs SMD5050/M9W/MDC5V30 Pixel/MSK9822Addressable RGBIP20 IP65 IP66 IP68
CL-5050-6060pcs SMD5050/M18W/MDC5V60 Pixel/MSK9822Addressable RGBIP20 IP65 IP66 IP68
CL-5050-120120pcs SMD5050/M36W/MDC5V120 Pixel/MSK9822Addressable RGBIP40 IP67
CL-5050-144144pcs SMD5050/M43.2W/MDC5V144 Pixel/MSK9822Addressable RGBIP40 IP67


3. Protection rate

IP40---No waterproof;

IP65---Epoxy coating;

IP67---Silicone tube;

IP68---PVC+epoxy.

5.Advantage:

1.Environment friendly.
2.Long lifespan and Energy-saving.

3.Experienced employees that capable for good service

4.Considerate and kind sales-after service.

5.Strict QC procession, ensure each product is high quality.

6.Application:

1)Architectural decorative lighting
2) Path and accent lighting
3) Amusement park, theater & aircraft cabin mood lighting
4) Emergency hallway lighting
5) Auditorium walkway lighting

7.Notice

Make sure the connection is correct according to the diagram.

Keep the surface of installation place clear and smooth, avoiding the strip fall off.

DO NOT press the LED.

DO NOT run over the peak value.

DO NOT attempt to make sharp bends with the strip.

DO NOT install where water or high humidity may be present without further protection.

Away from strong acid or strong alkali.

3M tape used only for indoor, when the strip installed outdoor, please use fixed slot

8.Related products:


ws2812


Product Description

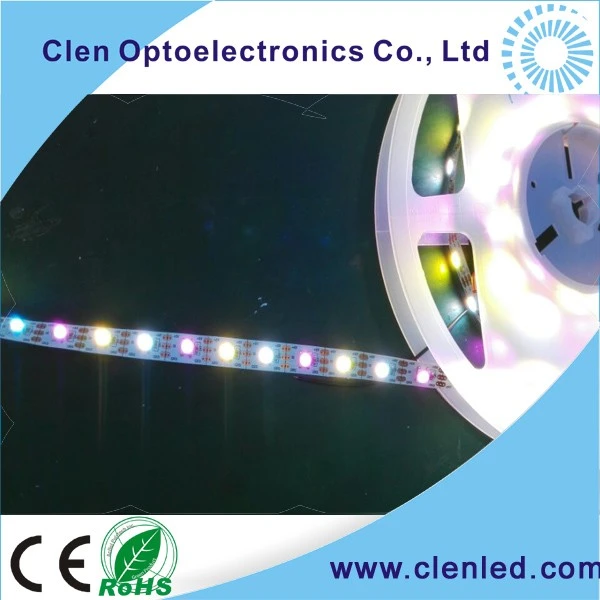

Brand new Smart RGBPixel Strip light---IC built-in sk9822 Digital LED Strip

You can design many different lighting effects or animations you want.

This is the highest resolution one for the moment!

Controller, power supply are available!

Pixel 30/ 60/120/144pixels/m addressable rgb led pixel strip, individually control

Packaging & Shipping

840929007_1871042492776_482

Our Services

1.You inquiry will be highly attention. Quality is our culture.

2.OEM& ODM ,Customsize are acceptable

3. Can provide technic support and dawing design

4.Delivery Time : 2-7working days after confirmed you payment

5.2 Years Warranty

6. Best after service
