Model NO.
CL-AN404
Quantity:
  • Product name:LED controller
  • Input Voltage:110v-220v
  • Color:Black
  • plug and play:24v
  • Certificates:CE ROHS
  • Inside power supply:without
  • Max Pixels quantity:4*680 pixels each port
  • Warranty(Year):2-Year
  • Lighting solutions service:Lighting and circuitry design
  • Type:controller
  • Place of Origin:CN;GUA
  • Brand Name:CLEN

SPI led controller Artnet DMX offline control led rgb stage lighting controller

Specification

  • Control IC: WS2811/SK6812/UCS1903/UCS8903/UCS9812/ DMX512
  • Input Voltage: AC100-240V
  • Output Voltage: DC5V/12V/24V
  • Size: 228*126*55mm (L*W*H)
  • Output Port: 4ports 4*680Pixels
  • Control System: Art-Net / DMX
  • Color: Matt Silver + Black
  • Gray Level: 32-65536
404N Controller
Features:
  • ART_NET independent working mode;
  • DMX call built-in SD card effect mode;
  • multiple network wire cascade, simple wiring;
  • support space point setting function;
  • 4 ports output, each port 680PIX;
  • output signal support 485, can be 100 meters distance transmission;

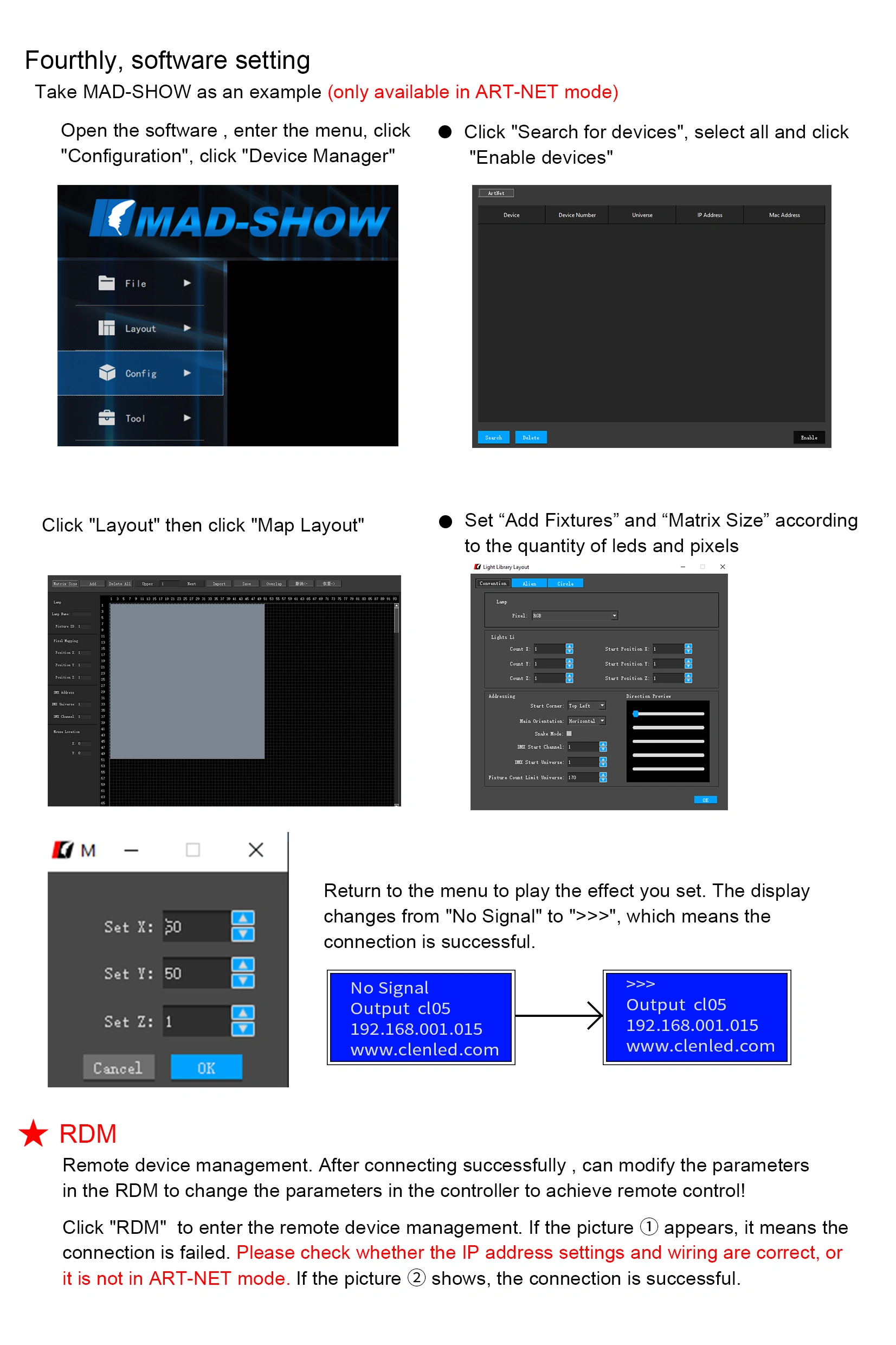

  • Work well with many light software like Madshow
Note:
  • AN404 in TTL port output case, the lamp distance from the controller more than 10 meters, please add a signal amplifier, to avoid the distance to affect the display effect;
  • Voltage shall not be connected to the output port to avoid burning down the controller;
  • Pay attention to the operating environment and make it waterproof and moisture-proof;
  • there is high pressure, non-professionals do not dismantle, or the consequences;
  • Man-made damage and natural damage are not guaranteed by the company;

AN404_02.jpgAN404_03.jpgAN404_04.jpgAN404_21_01.jpgAN404_21_02.jpgAN404_21_03.jpgAN404_21_04.jpg
