Model NO.
CL-BW5050RGB30- WS2812b
Delivery:
EXW
Minimum order quantity:
50 meters
Supply Ability:
3000 meters / Week
Country of Origin:
Shenzhen
Stock Time:
7 Days
Quantity:

  • LED Light Source:5050
  • Emitting Color:RGB
  • Name:Clen- SK6812 digital LED strip
  • Led/m:60pcs
  • Ic/m:60pcs
  • Voltage:5v
  • Power:18w
  • Waterproof grade:Non/IP65/IP67
  • Lighting solutions service:Project Installation
  • Lamp Body Material:Copper
  • Certification:ce
  • Certification:RoHS
  • Application:Theme Park
  • Light Source:LED
  • Warranty(Year):2-Year
  • Place of Origin:CN;GUA
  • Input Voltage(V):5V
  • Lamp Power:18W
  • Lamp Luminous Flux(lm):1200LM
  • CRI (Ra>):80
  • Working Temperature(℃):-22 - 60
  • Working Lifetime(Hour):50000
  • Brand Name:Clen
  • Model Number:CL-BW5050RGB5-SK6812

5050RGB SK6812 Addressable led Strip Pixel Strip light for Theme Park

Descriptions:

Input voltage :.............DC5v;

Power: .......................18watt/meter, 90w/roll;

Qty of LED: ...............60leds/meter, 300leds/roll, each LED addressable;

Number of IC: .............60IC/meter (1 IC drives 1led chip);

Pixels: ………..............60/meter;

Color scale: ...............256;

Controller: ……………CL-1000s Controller(can control 32meters), DMX512 or CL-300k;

FPC color: ……...........white available;

Protection rate: ….......Both waterproof (IP65, IP67,IP68) and non- waterproof(IP40) are available;

Colors: ........................Full color RGB, dream color changing;

Cuttable:......................each LED can be cut off.

Advantages:

1.High brightness SMD5050 LED;

2.Cuttable every LED+IC along the mark;

3.Each LED individually controlled;

4.Can show customized effects;

5.Support online control;

6.No ultraviolet and infrared radiation;

7.Energy saving;

8.Low heat-release;

9.Long lifetime for 50,000hrs;

10.CE and RoHS approved;

11.white PCB option.

Items for different waterproof:

IP20: Non waterproof, 3M adhensive backside.

IP65: Epoxy drop on the front side, 3M tape backside.

IP67:Silicone tube protection.

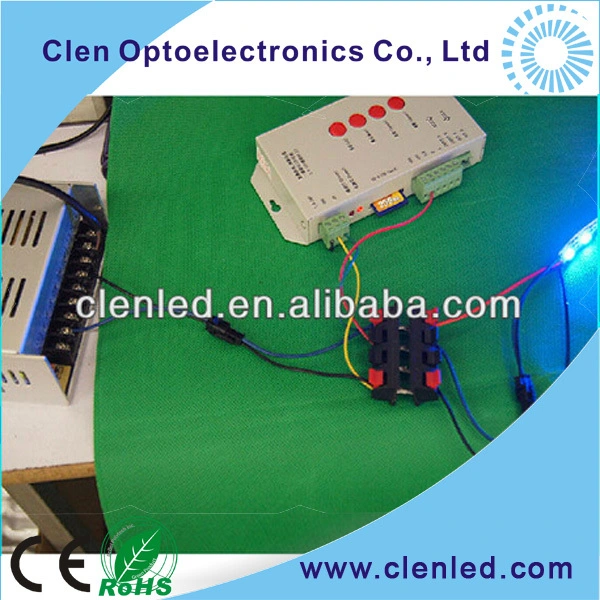

Connection Diagram:


Notice:

  1. Please use DC5V only;
  2. There are direction arrows on the PCB, arrow direction for connecting next reel strip;
  3. GND not only for power wire, also as signal wire, need connect to both power and controller;
  4. The Max distance between strips is 5m-10m, need use amplifier when more than 10m;
  5. Every 5m strip need re-connect to power supplier, avoiding voltage drop;
  6. Keep the surface of installation place clear and smooth, avoiding the strip fall off. DO NOT press the LED;
  7. DO NOT attempt to make sharp bend with the strip;
  8. DO NOT install where water or high humidity may be present without further protection;
  9. Away from strong acid or strong alkali.

Certifications:

Products technical parameters:

NameItem No.Led/PCSIC/mVoltage(DC)Power(MAX)Image pixelDescriptionM/Roll
Clen- WS2812b digital LED stripCL-BW5050RGB5-281230305930

500mm×10mm

×4MM PCB

color:white

5
CL-BW5050RGB15-2812606051860

500mm×10mm

×4MM PCB

color:white

5

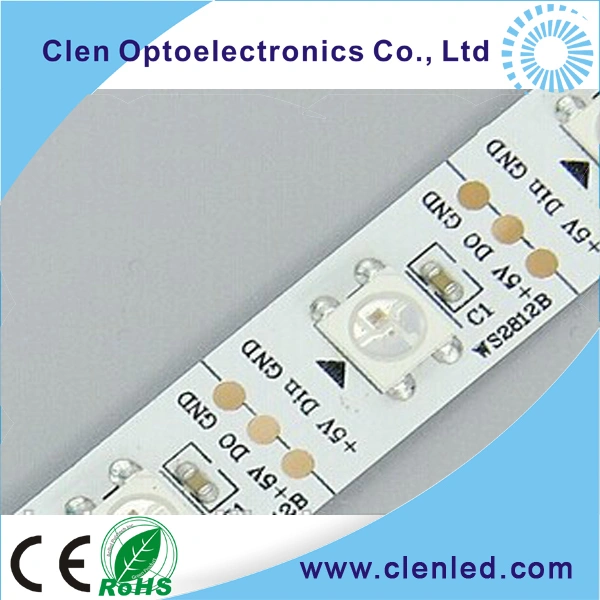

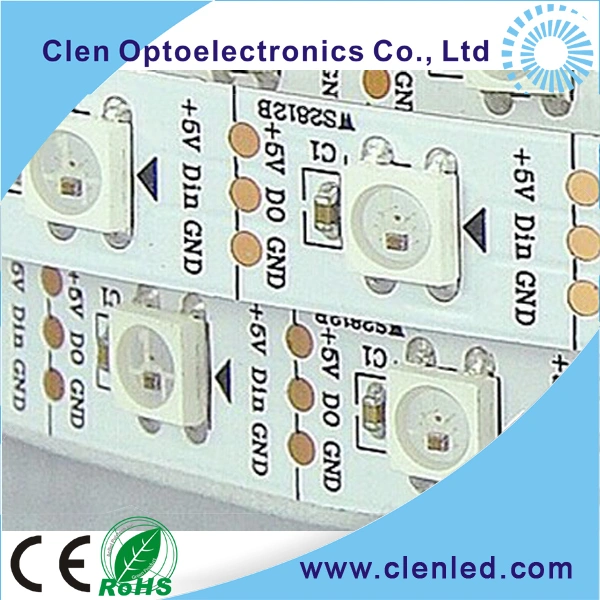

Products details:


Instructions:

Powe supply(5v)→→ Controller →→ws2812b LED Strip

1. Power supply: we have switching power supply: 50w~400w, Input voltage: AC65~264v.

2. controller:(CL-1000, CL-300K, Arduino)

CL-1000:controller, programmable, SD card offline work, it can control Max 2048 pixels, remote controller. We can provide the 007 software;

CL-300k, it can work both online and offine, can control Max 4096/8192 pixel, can connect with PC. software is free of charge

PS: This kind of software is very easy to operate, no need a very well knowledge in software.


remote control.jpg

Applications:

1) Iluminating signs;

2) Path & contour Marking;

3) Edge-Lighting of transparent or diffused material;

4) Decorating lighting;

5) Architectural decoration Lighting;

6) Backing lighting for under water project;

7) Archway/Canopy & Bridge Edge Lighting;

8) Amusement park/ Theater/ Aircraft cabin mood lighting;

9) Furniture Decoration Lighting;

10) Cove lighting;

11) Channel letters lighting;

12) Stairway Accent lighting.


Delivery payment details:

We ship goods by DHL/UPS/FEDEX/TNT express which takes 3~7 days to arrive, or by air cargo which takes about one week to arrive , or by sea which takes about one month to arrive , depending on your actual requirements.



shipping

payment.jpgOur services:

1. For all your inquires about us or our products, we will reply you in detail within 24 hours.

2. We own well-tranied and passional sales & after-sale services who can speak fluent Engligh language.

3. We offer OEM services. Can print your own logo on product, can customize the retail box packing and other things.

4. We have very experienced R&D engineers and we have strong ability to do ODM projects.
